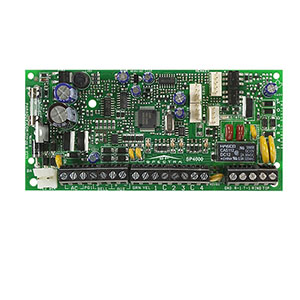

SP4000 / SP5500 / SP6000 / SP65 / SP7000 Expandable to 32-Zone Control Panels

Common Features Supports StayD mode 4-wire expansion bus Expandable to 32 zones Expandable to 16 PGMs 2 Partitions 32 User Codes Supports PCS Series Supports IP100 Internet Module Supports VDMP3 Plug-in voice dialer Supports REM3 hand-held remote keypad – require RTX3 V1.31 or higher (SP4000 – One way only) Supports iParadox app In-field firmware upgradeable via a 307USB – WinLoad for SP5500/SP6000/SP7000 – InField Firmware Upgrade Software for SP4000/SP65 Menu-driven programming for the Installer, Master and Maintenance codes Multiple phone numbers: 3 for monitoring station, 5 for personal dialing and 1 for pager reporting (SP65: via PCS200 only – GSM reporting) Patented 2 opto coupler dialer circuit – the most reliable dialer in the industry – US Patents 5751803, RE39406 (N/A with the SP65) Automatic Daylight Savings Time feature Push button software reset (reset to default values and restart) Direct connect at 9.6k baud – WinLoad for SP5500/SP6000/SP7000 – Babyware for SP4000/SP65 256 events buffered Fits in 20cm x 25.5cm x 7.6cm (8in x 10in x 3in) and 28cm x 28cm x 7.6cm (11in x 11in x 3in) metal boxes EN50131 grade 2
